Okvir

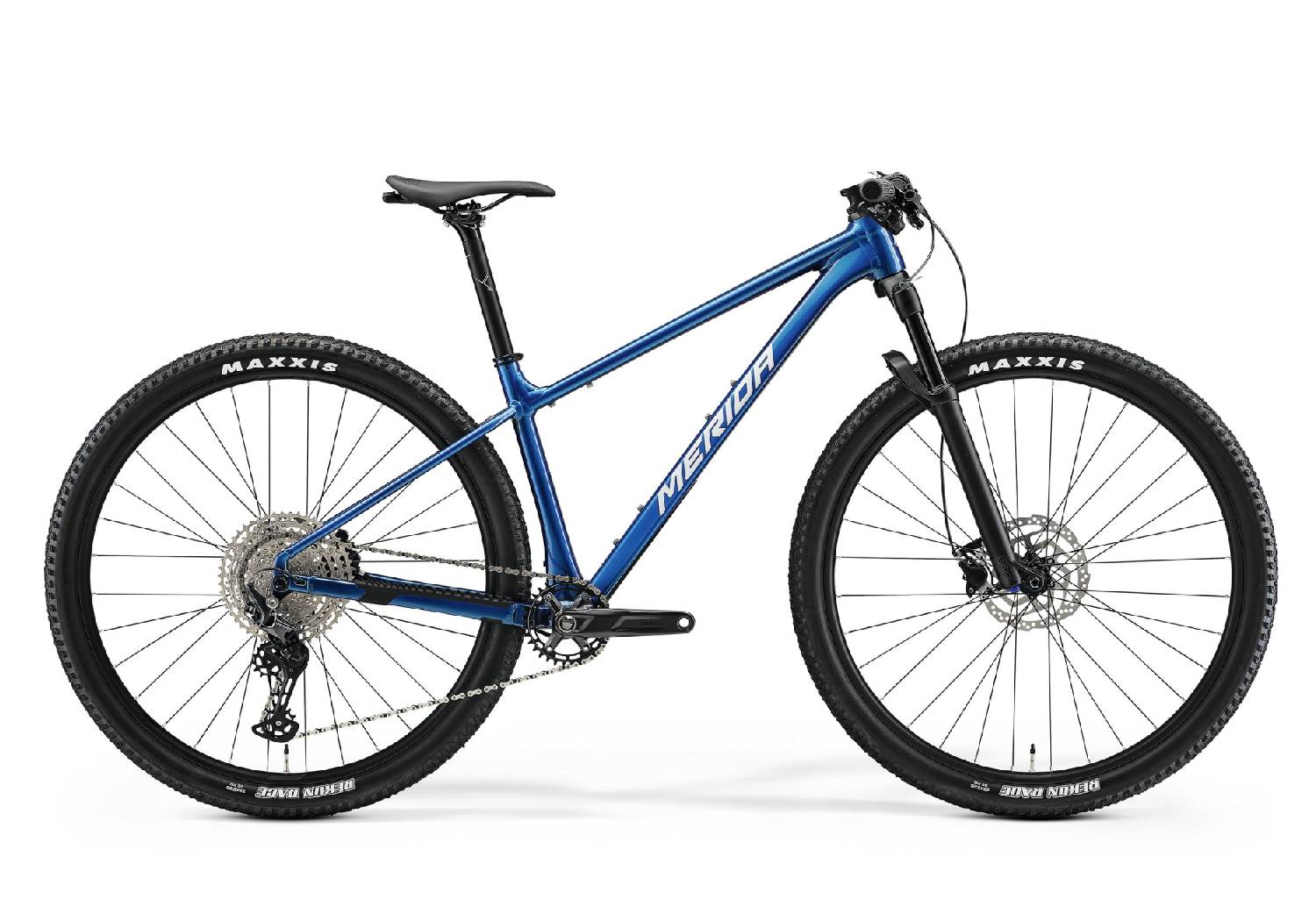

BIG.NINE TFS III
material: aluminium
29.5x2.25" max. wheelsize
135x9mm axle standard
BSA bottom bracket standard
Smooth welding
Veličine
S, M, L, XL, XXL
Vilica
Manitou Markhor Comp
Air
100mm suspension travel
Tapered
Lockout
51mm fork offset
Kočnice
Shimano M4100
2 piston
Rotori
Shimano RT10
180mm
160 mm
Ležaj vilice
MERIDA M4455
Volan
MERIDA EXPERT CC
material: aluminium
720mm width
10mm rise
Lula volana
MERIDA COMP CC
material: aluminium
31.8mm diameter
7° stem angle
70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
Gripovi
MERIDA COMP EC
Mjenjač zadnji
Shimano Deore M5100 Shadow+
SGS
Ručice mjenjača
Shimano Deore M5100
Cijev sjedala
MERIDA COMP CC
material: aluminium
30.9mm diameter
0mm setback
Obujmica cijevi sjedala
MERIDA COMP QR
Sjedalo
MERIDA COMP SL
Pedale
VP VPE-891
Lanac
KMC X11 NPBK
Pogon
Shimano Deore M5100
32 teeth
170 mm-S, 175 mm-M up
Kazeta
Shimano Deore M5100
11-51 teeth
11 speed
Glavčine
Shimano TX505
100x9mm width front hub
32 spoke holes
Centerlock
135x9mm width rear hub
32 spoke holes
Centerlock
Obruči
MERIDA COMP CC
20mm inner width
material: aluminium
Gume
Maxxis Ikon
29x2.2"
wire
Žbice
Black stainless
Max. nosivost
135 kg
